General Information

Reitti can be configured to use an OpenID Connect (OIDC) provider for user authentication. This allows you to integrate Reitti with existing identity management systems and leverage features like single sign-on (SSO) and multi-factor authentication (MFA) provided by your OIDC provider.

Configuration

Docker

To enable OIDC authentication when running Reitti with Docker, you need to set the following environment variables in your docker-compose.yml file under the reitti service.

Environment Variable Description Default Value Example Value
OIDC_ENABLED Whether to enable OIDC sign-ins false true
OIDC_CLIENT_ID Your OpenID Connect Client ID (from your provider) google
OIDC_CLIENT_SECRET Your OpenID Connect Client secret (from your provider) F0oxfg8b2rp5X97YPS92C2ERxof1oike
OIDC_ISSUER_URI Your OpenID Connect Provider Discovery URI (don't include the /.well-known/openid-configuration part of the URI) https://github.com/login/oauth
OIDC_SCOPE Your OpenID Connect scopes for your user (set to the values in the example if you're unsure). This variable is optional. openid,profile openid,profile

Here's an example of how you might add these to your docker-compose.yml:

services:
  reitti:
    image: dedicatedcode/reitti:latest
    environment:
      - OIDC_ENABLED=true
      - OIDC_CLIENT_ID=your_client_id
      - OIDC_CLIENT_SECRET=your_client_secret
      - OIDC_ISSUER_URI=https://your_oidc_provider.com
# ... other configurations

Running from source

When running Reitti directly from its source code, OIDC authentication can be enabled by placing an oidc.properties file in the same directory as your application.properties file. This oidc.properties file should contain the necessary OIDC configuration details.

reitti.security.oidc.enabled=true
spring.security.oauth2.client.registration.oauth.client-id=<client id from your provider>
spring.security.oauth2.client.registration.oauth.client-secret=<client secret from your provider>
spring.security.oauth2.client.provider.oauth.issuer-uri=<url of your provider>
spring.security.oauth2.client.registration.oauth.scope=openid,profile

Additional Configuration

User Registration Control

By default, Reitti automatically creates new user accounts when someone logs in via OIDC for the first time. You can control this behavior with the following setting:

Environment Variable Description Default Value Example Value
OIDC_SIGN_UP_ENABLED Whether to automatically create new users on first OIDC login. When disabled, only existing users can log in via OIDC. true false

Local Authentication Control

You can configure whether users can still use local passwords alongside OIDC authentication:

Environment Variable Description Default Value Example Value
DISABLE_LOCAL_LOGIN When enabled, disables local password authentication and clears existing passwords to enforce OIDC-only login. false true

User Matching and Account Linking

Reitti uses a flexible process to match OIDC users with existing accounts:

  1. Primary Match: Searches for users by external ID (format: {issuer}:{subject})
  2. Fallback Match: If no external ID match, searches by the OIDC preferred_username
  3. Account Linking: When a username match is found, the account is linked with the external ID for future logins

User Data Synchronization

User information is automatically updated from OIDC claims on each login:

  • Username: Set from the preferred_username claim
  • Display Name: Updated from the name claim
  • Profile URL: Updated from the profile claim (if available)
  • Avatar: Automatically downloaded from the picture claim (if provided)

Required OIDC Claims

Your OIDC provider must provide these claims for successful authentication:

  • sub (subject) - Required for external ID generation
  • preferred_username - Required for username assignment
  • name - Recommended for display name
  • profile - Optional for profile URL
  • picture - Optional for avatar download

Security Notes

  • External IDs are immutable once set, ensuring account security even if usernames change in the OIDC provider
  • User data is refreshed on each login to keep information current
  • Avatar downloads are performed securely with proper error handling

Provider Examples

This section provides examples of how to configure Reitti with different OpenID Connect providers.

PocketId

PocketId is a self-hosted OpenID Connect provider. You can find more information about the project here.

To configure Reitti to use PocketId:

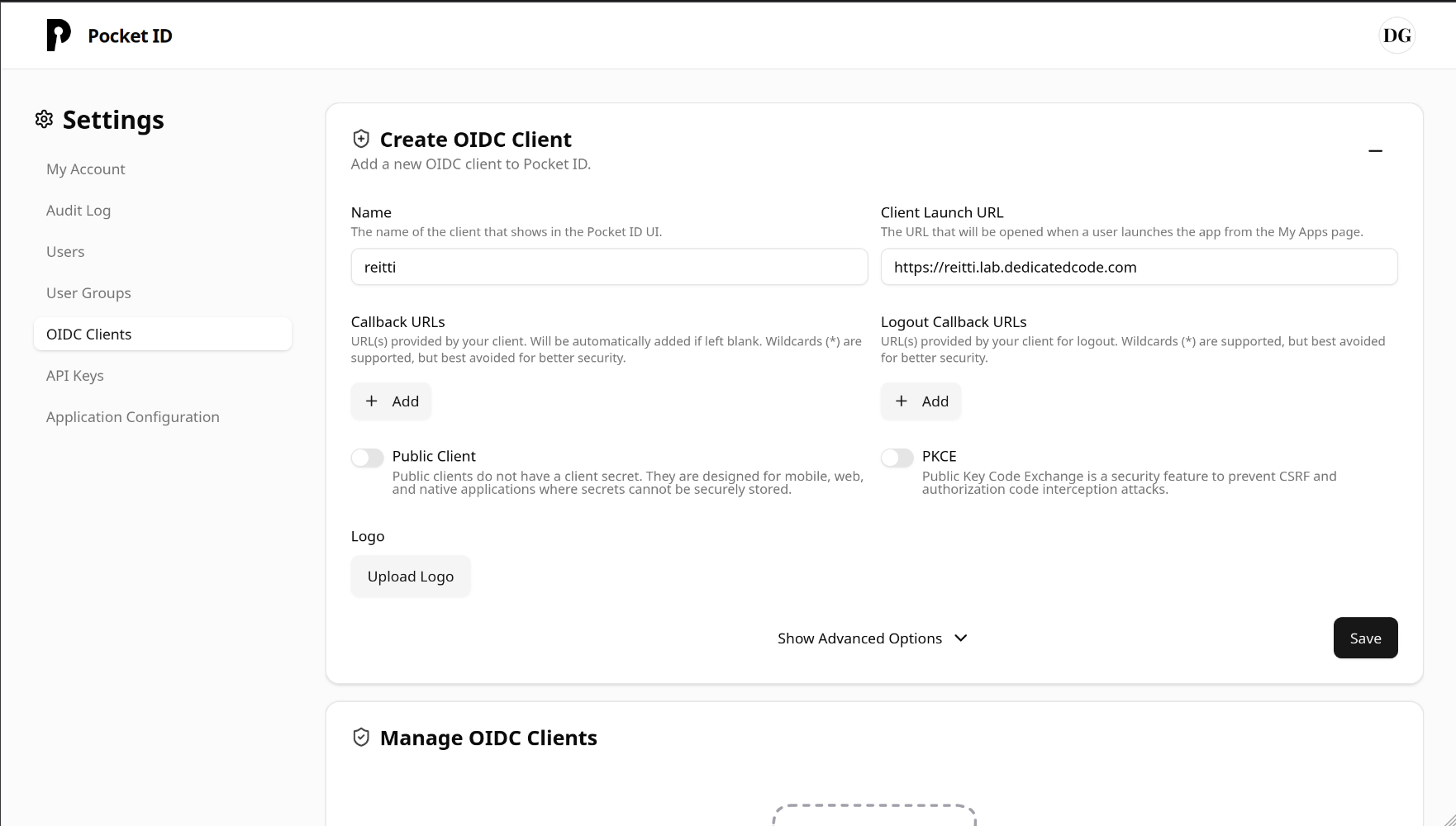

Create a new client in PocketId:

  • Log in to your PocketId instance.
  • Navigate to the client registration section.
  • Create a new client, providing a name for your Reitti installation (e.g., "Reitti App").
  • Crucially, set the URI to the URL of your Reitti installation.
  • If you want to be logged out of Reitti when you log out in PocketId, make sure to set the Logout Callback Url to https:///logout/connect/back-channel/oauth

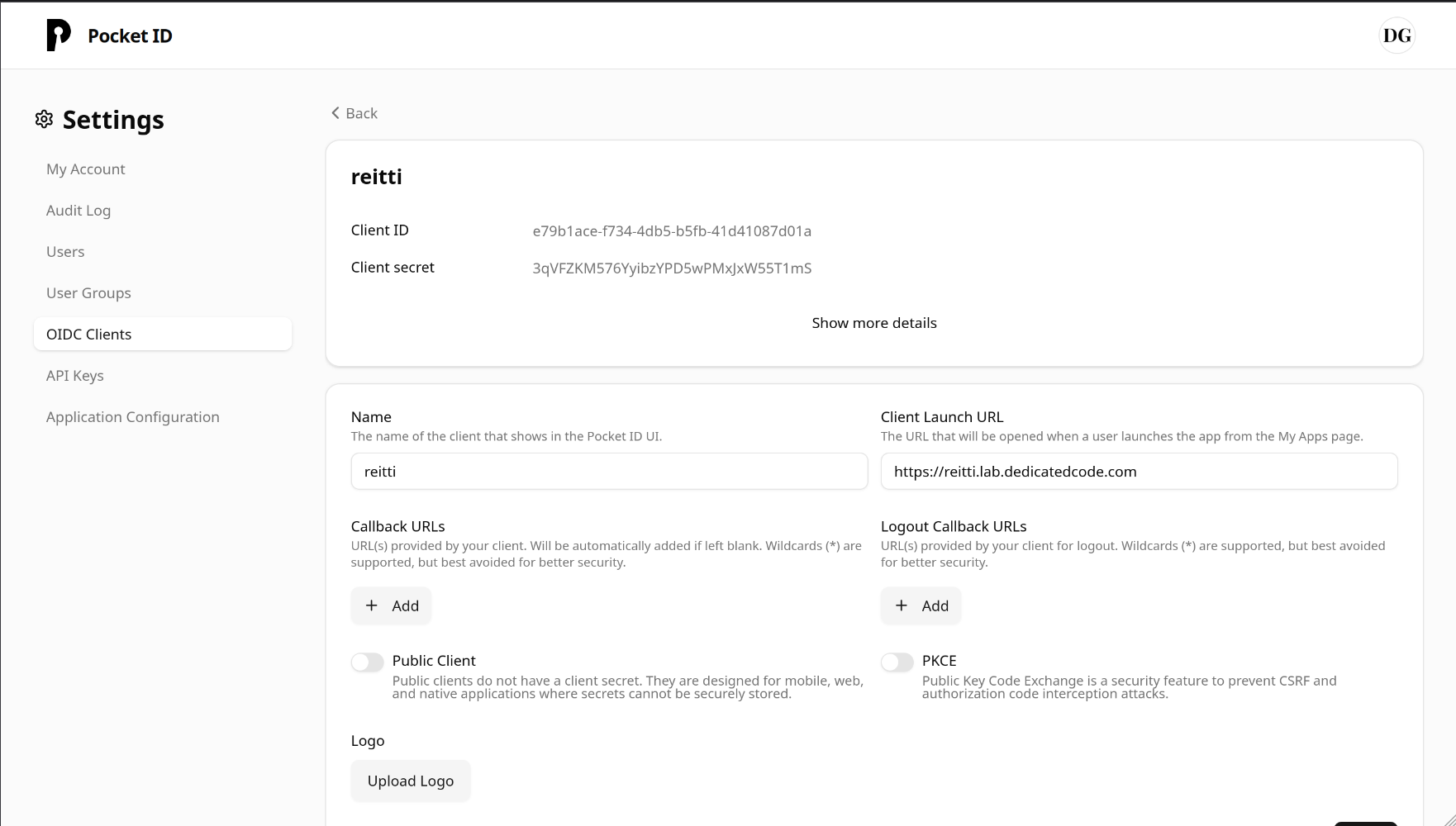

Obtain Client ID and Client Secret:

After creating the client, PocketId will display a Client ID and a Client Secret. Copy these values.

Configure Reitti:

  • For Docker: Set the OIDC_CLIENT_ID and OIDC_CLIENT_SECRET environment variables in your docker-compose.yml file to the values you copied from PocketId.
  • For Running from Source: Enter the Client ID and Client Secret into the oidc.properties file for spring.security.oauth2.client.registration.oauth.client-id and spring.security.oauth2.client.registration.oauth.client-secret respectively.
  • The OIDC_ISSUER_URI (for Docker) or spring.security.oauth2.client.provider.oauth.issuer-uri (for oidc.properties) should be set to the base URL of your PocketId installation (e.g., https://your-pocketid-domain.com).

Authelia

Authelia is an open-source authentication server that provides single sign-on (SSO) and two-factor authentication. For integrating Reitti with Authelia using OpenID Connect (OIDC), follow these steps:

Generate Client Secret

Run the following command to generate a secure client secret. You must save this value as it cannot be recovered:

docker run authelia/authelia:latest authelia crypto hash generate pbkdf2 \
  --variant sha512 \
  --random \
  --random.length 72 \
  --random.charset rfc3986

Configure Authelia

Add the following OIDC client configuration to your Authelia config.yml under identity_providers:oidc:clients, replacing these values: - <CLIENT-SECRET-DIGEST> with the hash from step 1 - Redirect URIs with your Reitti's actual URLs

- client_id: 'reitti'
  client_name: 'Reitti'
  client_secret: '<CLIENT-SECRET-DIGEST>'
  public: false
  scopes:
    - 'openid'
    - 'profile'
  authorization_policy: one_factor
  consent_mode: pre-configured
  token_endpoint_auth_method: "client_secret_basic"
  pre_configured_consent_duration: 1w
  redirect_uris:
    - https://<your reitti domain>/oauth2/callback
    - https://<your reitti domain>/login
  grant_types:
    - refresh_token
    - authorization_code
  response_types:
    - code
  response_modes:
    - form_post
    - query
    - fragment

Configure Reitti

For Docker Deployment: Add these environment variables in your docker-compose.yml file: - OIDC_CLIENT_ID: Use the client ID ("reitti" as shown above) - OIDC_CLIENT_SECRET: Use the original secret value (before hashing) - OIDC_ISSUER_URI: Your Authelia base URL (e.g., https://auth.yourdomain.com)

For Source Deployment: Configure these properties in oidc.properties:

spring.security.oauth2.client.registration.oauth.client-id=reitti
spring.security.oauth2.client.registration.oauth.client-secret=<original-secret>
spring.security.oauth2.client.provider.oauth.issuer-uri=https://auth.yourdomain.com

After making these changes, restart both Authelia and Reitti for the configuration to take effect.

If you need more information, here is a good tutorial for setting up Immich, the basics are the same for Reitti. blog.lrvt.de/configuring-authelia-oidc-for-immich/
